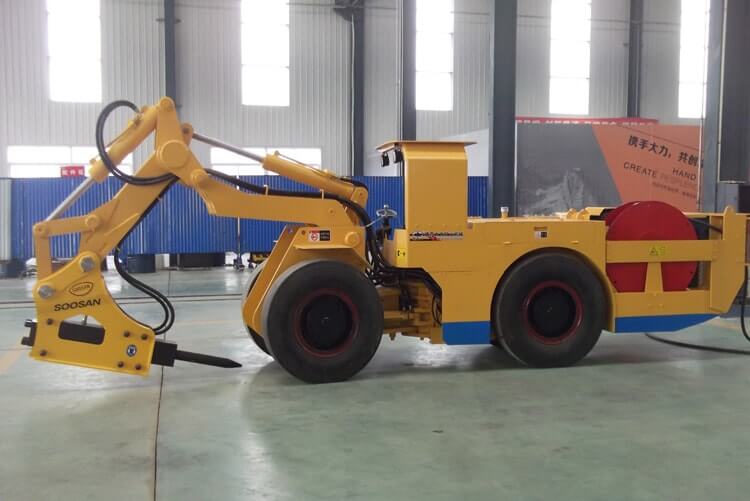

Electric Mobile Rock Splitter SJD-400

Electric Mobile Rock Splitter SJD-400

SJD-400 mobile rock splitter is widely used in various mines and tunnel construction projects to split large stones. The car body is narrow and the whole machine is low. It is especially suitable for underground mine operation. The frames are articulated with large steering angle and flexible steering. The transmission system is hydrostatic. Variable pump and variable motor are used in hydraulic system.

Chat With Us Leave Message

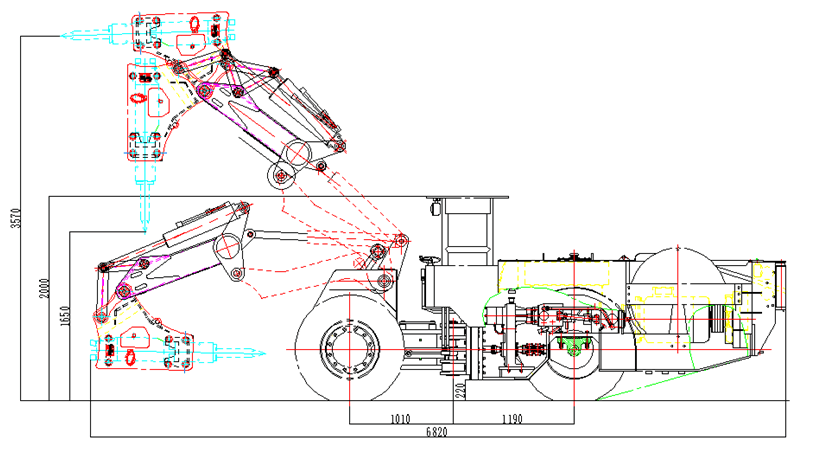

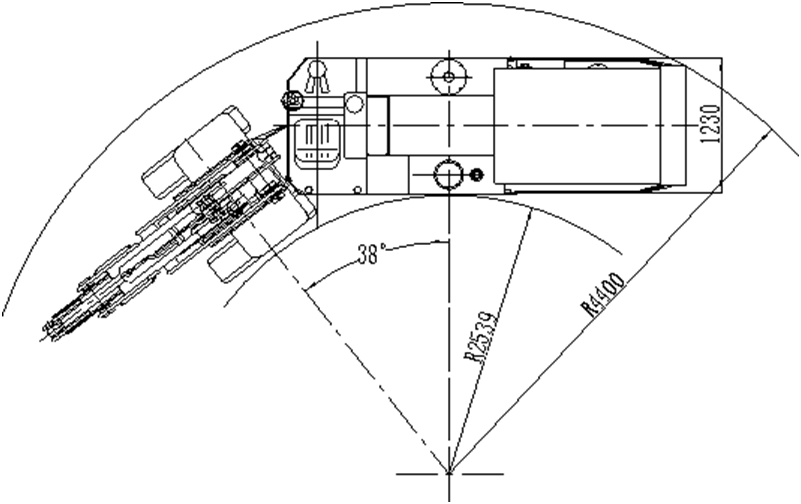

Drawing

Main Technical Parameters

Dimension

6820*1230*2000mm

?

Climing Ability

20°

Rod Diameter

85mm

Beating Frequency

400-800bpm

Min. Ground Clearance

220mm

Oscilation

±8°

Main Configuration

Motor:Y225M-4 / 45kw / 1480rpm

Transmission:Hydrostatic

Axle:Rigid Planetary Drive Axle, NO-SPIN differential in front axle

Braking:Posi-stop
